Sleeps 8
-
3 Slides
-
Outdoor KitchenLoft
-
44ft Long
-
15,533 lbs
-
Axis, Carbide

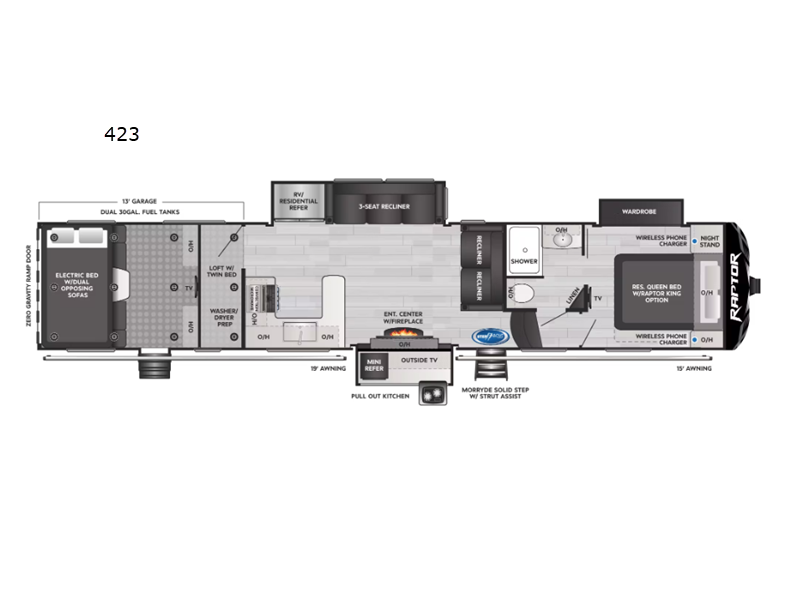

423 Floorplan
Specifications
Sleeps | 8 | Slides | 3 |
Length | 44 ft | Ext Height | 13 ft 6 in |
Interior Color | Axis, Carbide | Hitch Weight | 3390 lbs |
Dry Weight | 15533 lbs | Cargo Capacity | 3467 lbs |
Fresh Water Capacity | 94 gals | Grey Water Capacity | 82 gals |
Black Water Capacity | 44 gals | Tire Size | ST235/80R16G |
Furnace BTU | 35000 btu | Generator | Onan 5,500W Gas |
Fuel Capacity | 60 gals | Number Of Bunks | 1 |
Available Beds | Queen | Refrigerator Type | Stainless Steel |
Refrigerator Size | 18 cu ft | Convection Cooking | Yes |
Cooktop Burners | 3 | Number of Awnings | 2 |
Axle Weight | 7000 lbs | Garage Size | 13 ft |
LP Tank Capacity | 30 lbs | Water Heater Type | On Demand |
TV Info | LR 50" LED TV, BR LED TV, Garage 40" Pull-Down TV, Ext. TV | Awning Info | 18' and 15' Electric with LED Lights |
Axle Count | 3 | Washer/Dryer Available | Yes |
Number of LP Tanks | 2 | Shower Type | Shower w/Seat |
Electrical Service | 50 amp |
Description
Keystone Raptor toy hauler 423 highlights:
- Dual Entry Doors
- Loft
- Front Private Bedroom
- Outside TV
- Outside Shower
Don't pass up your chance to camp in true luxury with this toy hauler! You can bring your toys along with a 13' garage area and once you arrive you can set up the electric bed above dual opposing sofas with a table in between for meal times and the loft with a twin bed. There are also dual entry doors to the unit and an area prepped to add an optional washer and dryer. Prepare your meals either indoors at the U-shaped kitchen with a three burner cooktop or head outdoors to use the exterior pull-out kitchen while watching the big game on the outside TV. When mother nature rains on your parade, relax on either the connected two recliners or the 3-seat recliner across from the entertainment center with a fireplace and 50" LED TV. Easily access the shower in the dual entry bathroom and enjoy the convenience of it leading directly into the front private bedroom which has a residential queen bed to lay your head on at night and a wardrobe slide!
Experience a breath of fresh air with one of these Keystone RV Raptor fifth wheel toy haulers! Their rugged construction consists of a walkable one-piece Alpha Super Flex TPO roof with aluminum flashing, G-rated tires, Dyna Span floor decking, and 5,000 lb. frame-welded tie downs to keep your toys in place as you travel. With an on-demand water heater, you can have an endless amount of hot water when you need it. Some unexpected conveniences you will appreciate include an Omni-Chill A/C system to keep you cool on those hot summer days, a Furrion backup camera and HitchVision to prevent damages, and a Generation 3 iN-Command smart automation system with Global Connect to make life easier. Soft-close hardwood cabinetry makes for a quiet closure to enjoy undetected late night snacking, and the MORryde zero-gravity ramp door makes it easy to load and unload your toys. Come find the right one for you today!
Features
Standard Features (2022)
Keystone Exclusives
- 3-year limited structural warranty
- 1-year limited base warranty
- Color-coded unified wiring standard
- 4G LTE and Wi-Fi prep
- Tuf-Lok™ thermoplastic duct joiners
- KeyTV™
- In-floor heating ducts
- Tru-fit™ slide construction
Exterior
- 10" I-Beam frame (select models)
- 12" I-Beam frame (select models)
- MaxTurn™ Technology w/ Rota-Flex™ pin box
- Hitch Vision™ w/ LED lighting
- High-gloss exterior, laminated sidewalls w/ double-welded aluminum construction
- Frameless tinted safety glass windows
- Frameless dual-pane windows (optional)
- Painted fiberglass cap w/ patented Key Shield™ protection & LED lighting
- Radius roof w/ 5" pre-engineered roof trusses and walkable rafters
- 1-piece Alpha Super Flex TPO membrane (18-year limited warranty)
- Exterior ladder
- Norco BAL® Accu-Slide™ expandable room system
- Dexter® E-Z Lube® 7,000 lb. axles w/ 12" x 2" self-adjusting electric brakes
- MORryde CRE3000 suspension w/ wet bolts
- G-rated tires (6-year warranty) w/ spare tire
- 6-point hydraulic leveling system
- 78" entry door w/ euro latch
- MORryde® Step Above™ w/ strut assist
- Heated and lighted pass through storage w/ 1" slam-latch doors
- Furrion® wireless backup camera
- Battery quick-disconnect
- Convenience center (single-point for all system hook-ups)
- Onan 5,500 watt gas generator (standard) w/ 30-gallon fuel tank
- 106 gal. fresh, 82 gal. gray, 82. gal. waste water tanks
- Outdoor kitchen (select models)
- 50 Amp service
- Outside shower- hot & cold w/ 25' coil hose
- One-touch electric awnings w/ LED lights (2)
- Solar-panel prep on roof
- 265 watt solar panel w/2,000 watt inverter (optional)
Interior
- Designer style vinyl flooring throughout
- 8' tall living room and kitchen slides
- Single, pull-down window shade
- Designer upholstered window valances
- Beach wood and white cabinetry
- Thomas Payne® furniture equipped w/ heat, massage, & LED lights
- Hardwood ceiling treatment w/ LED accent lighting
- Fireplace
- LED lighting throughout
Kitchen Features
- Soft-close hardwood cabinetry w/ hidden hinges, 100 lb. full extension ball-bearing drawer glides
- Solid-surface countertops w/ LED infused backlighting
- Large farmhouse style stainless steel kitchen sink w/ roll-up sink cover/drying rack
- Upgraded residential pull-out kitchen faucet
- Portable multi-use table
- MORryde® flip-up bar stools (select models)
- Stainless steel sink
Appliances & Utilities
- (2) 30 lb. LP tanks w/ quick disconnect
- Omni-Chill™ 3/4 ton high efficiency (3) A/Cs
- 35,000 BTU gas furnace
- On-demand water heater
- 50" LED TV w/ premium surround sound
- Outdoor TV (select models)
- PolarMax™ 18 cu. ft. stainless steel refrigerator
- Stainless steel residential refrigerator (optional)
- 30" stainless steel convection microwave
- 3-burner range and 22" stainless steel oven
- Washer/dryer prep
- Generation 3 iN-Command® smart automation system
Bathroom Features
- Pressed countertops
- Fiberglass 1-piece shower surround, removable shower head, built-in skylight
- Porcelain foot flush toilet
Bedroom Features
- 60" x 80" queen bed (select models)
- 68" x 76" king bed (select models)
- LED overhead reading lights
- Outlets/USB on both sides of bed
- Wireless phone charging station (select models)
- Decorative bedspread & tufted pillows
- LED TV in bedroom
Bathroom Features
- Pressed countertops
- Fiberglass 1-piece shower surround, removable shower head, built-in skylight
- Porcelain foot flush toilet
Weather Package
- 12V tank heaters
- Heated, insulated, enclosed holding tanks
Weather Protection
- Extreme Temperature package
Safety
- Breakaway switch
- GFI receptacles
- Carbon monoxide detector
- Smoke detector
- Propane gas leak detector
- Fire extinguisher
Garage
- Dyna Span® 1-piece floor decking (25-year warranty)
- 5,000 lb. frame welded tie-downs
- Tinted glass door w/ vapor seal
- MORryde® Zero Gravity™ ramp door Patio steps (standard) w/ 1,500 lb. support legs
- Rear-ramp patio w/ electric awning & side-entry steps (optional)
- Three seasons patio door (optional)
- Half-bath (select models)
- 3rd A/C prep & ducted heat into garage
- On-board fuel station (60-gal capacity)
- Ram air ventilation system
- Hardwood angled-cabinets w/ 40" pull-down TV in garage
- HappiJac® bed w/ flip down sofas
SolarFlex
- SolarFlex 200
- SolarFlex 400i (optional)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
